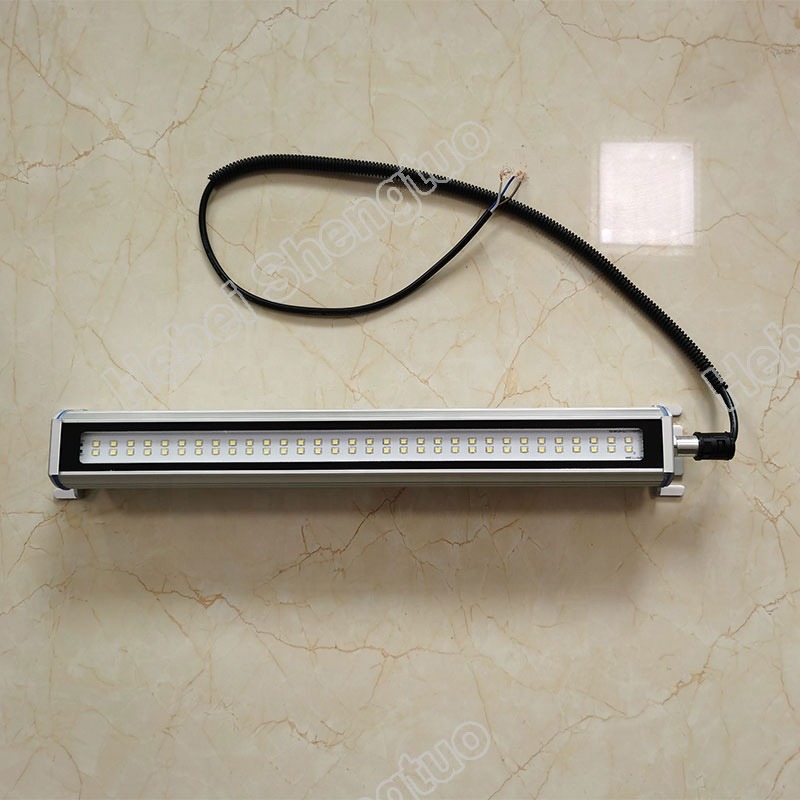

Body: Waterproof Explosion Proof AL CNC LED Machine Operating Lights Lamp Lamp Builder

1 Piece
MOQ
Body: Waterproof Explosion Proof AL CNC LED Machine Operating Lights Lamp Lamp Builder
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
IP Rating: IP68
Color Temperature(CCT): 4000k-6500K
Beam Angle(°): 110°
CRI (Ra>): >80Ra
Input Voltage(V): AC/VC 24v,AC220V
Lamp Luminous Efficiency(lm/w): 110-130lm/W
Lamp Luminous Flux(lm): 1250lm,1750lm,2500lm,3000lm,5000lm
Warranty(Year): 1-Year
Working Lifetime(Hour): 50000-70000h
Working Temperature(℃): -20℃--60℃
Color Rendering Index(Ra): >80 Pa
Model Number: F9
Emitting Color: Cold White
Power Supply: AC, DC
Light Source: LED, Halogen Bulbs
Support Dimmer: No
Color: Silver
Lighting solutions service: Lighting and circuitry design
Lifespan (hours): 50000 h--70000 h
Working Time (hours): 50000 h--70000 h
Product name: CNC LED Machine Working Lights Lamp Waterproof Explosion-proof Lamp
Light Source:: LED
Power Supply:: AC/DC
Material:: Body:AL,Cover:Tempered Glass, Bracket:AL
Installation: Fixed by Screw+ Bracket
Length: 300mm,400mm,600mm,800mm,1200mm
Power: 7w,10w,12w,14w,16w,20w,20w,24w,40w
Lamp Luminous: 770lm,1250lm,1320lm,1750lm,1760lm,2200lm,2500lm,3000lm,5000lm
Keyword: Working Light
name: Working Lamp
Certificering: CCC, ce, LVD, RoHS
Basis informatie
Certificering: CCC, ce, LVD, RoHS
Model Number: F9
Betalen & Verzenden Algemene voorwaarden
Packaging Details: The LED machine lights lamp for machine tools will be packaged in one case then packed in cartons or pallets or according to customer needs
Supply Ability: 100000 Meter/Meters per Month CNC LED Machine Working Lights Lamp
Productomschrijving
Product Description
Our LED Machine Lamp is high quality. Its application is engraving machine, EDM,Machining center,CNC machine, Grinding machine, and kinds of machine, for some hard place with high request.

You can click the following photos to send us the inquiry any time
Products Parameter
Our LED machine lamp feature has four points.
1, Import 2835 LED source, low watts,high efficiency,long lifespan
2, Anodized aluminum housing and tempered glass,resistant to high
3, Protection class is IP68
4, Install by Aluminum bracket

You can click the following photos to send us the inquiry any time
Product Name
CNC LED Machine Working Lights Lamp Waterproof Explosion-proof Lamp Fabricator
Model No.
F9
Lumen
(10w)1250lm/(14w)1750lm/(20w)2500lm/(24w)3000lm/(40w)5000lm
Efficiency
120-130lm/W
Voltage
AC/DC24V, AC220V(50/60HZ)
Power
10 w/14 w/20 w/24 w/40 w
CRI
＞80 Ra
Beam Angle
110°
CCT
4000-4500K, 6000-6500K
Length(mm)
300 mm/400 mm/600 mm/800 mm/1200 mm
IP Rating
IP68
Temperature
＜60℃
Lifetime
70,000H
Body Color
Silver
Material
Body: AL,  Cover: Tempered Glass,  Base:AL
Installation
Fixed by Screw + Bracket
Bracket
L: Fixed bracket, H:Sliding bracket,  M: Extended sliding bracket
Body Length---L1
Fixed bracket--L
Installation hole distance--L2
Sliding bracket--H
Installation hole distance--L2
Extended sliding bracket--M   Installation hole distance--L3
232mm
250-270mm
100-240mm
---------
282mm
300-320mm
100-290mm
140-330mm
422mm
440-460mm
200-430mm
250-470mm
622mm
640-660mm
300-630mm
400-670mm
822mm
840-860mm
400-830mm
500-870mm
Detailed Images
You can click the following photos to send us the inquiry any time


Movable screw

Rotating bracket

Aluminum lamp body shell--Strong and Hard

Tempered glass





Aluminum Lamp Base

360° whirl

Fixed by screw

Bold wire

Fixed by screw

Each wire is equipped with a hose to protect the wire

IP Rating is IP68
